INTELLIGENT TRACKING, UNMATCHED SECURITY
InnoTracking offers AI-driven, real-time people tracking without facial pre-registration. Optimized for Intel platforms, it integrates seamlessly with existing systems, providing multi-track capabilities and high accuracy.



SOLUTION AT A GLANCE

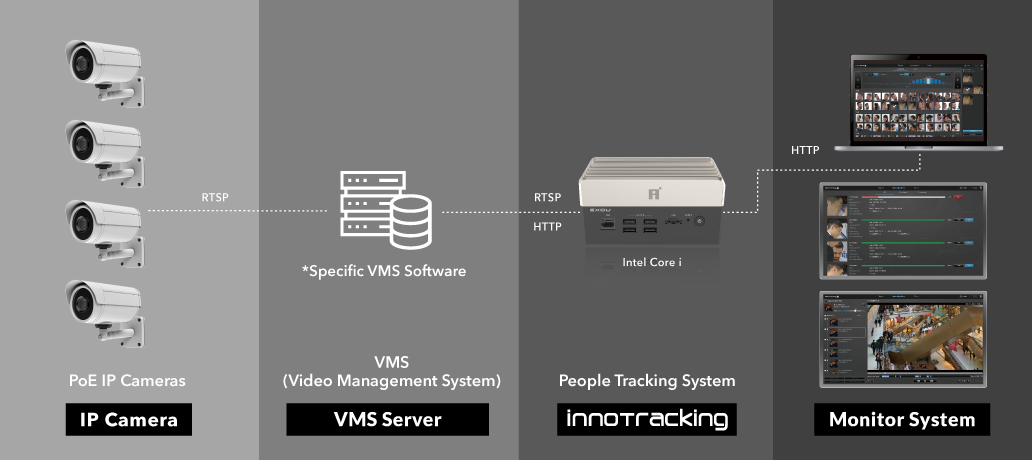

A VMS-compatible solution that bridges video input and monitoring through edge AI hardware to enable real-time people tracking easily.

*InnoTracking requires receiving video streams from a specific VMS (Video Management System) software as the video source. InnoTracking does not include the VMS software.
SMART VISION FOR REAL-TIME PEOPLE TRACKING
ACCURATE AI FACIAL COMPARISON AND SEARCH
- Quick comparison and search for suspicious faces.
- No need to enroll a face in advance.
- De-identified facial search algorithm.
- High accuracy can still be ensured despite factors such as lighting, angle, and occlusion.

NO PRE-REGISTRATION REQUIRED
- Ideal for dynamic environments like airports, malls, and public events.
- Simplifies implementation, reducing setup time and operational costs.
- Privacy-preserving, reduces pre-regist data storage needs and ensures compliance with privacy regulations.

EASY WAY TO TRACK A SUSPECT
- Upload a target suspect‘s photo for tracking.
- Create a watch list for tracking and alerts.
- Search captured faces from live video and VMS video archives.

UTILIZE EXISTING ON-SITE CAMERAS
- Utilize existing on-site cameras for cross-camera and cross-time facial searches.
- Support RTSP.
* Nx witness VMS support only.

ENERGY-SAVING AND COST SAVING
Our solution uses CPU for inference instead of GPU, reducing hardware costs while achieving the same search performance—capable of searching 100,000 images per second.

BUILT TO ENDURE: HIGH-TEMP & VIBRATION-RESISTANT INDUSTRIAL PCS
Count on our industrial PCs for reliable performance, even in the most demanding conditions. Tested to withstand 3G vibrations (IEC 60068-2-64) and 30G shocks (IEC 60068-2-27), with operating temperatures ranging from -20°C ~ 60°C, our systems are engineered for non-stop operation.

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
SPECIFICATION TABLE
Edge Server | ABOX-5120 |
CPU | Intel® Celeron® Processor 7305E |
Memory | 32GB - DDR5 4800MT/s |
Storage | 512GB |
Display | 1 x USB 3.2 Gen1 Type C 1 x mini DP 1 x HDMI |
Power | Input: Single 9 ~ 36 V |
OS | Linux / Ubuntu 22.04.3 LTS |
Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -40°C ~ 85°C |
Operating Humidity | 5% to 95% Relative humidity, non-condensing |
Vibration During Operation | With SSD: 3G, IEC 60068-2-64, random, 5~500Hz, 1hr/axis |
Shock During Operation | With SSD: 30G, IEC 60068-2-27, half sine, 11ms duration |
Dimension | 182.17 x 108.64 x 63.16/mm |
Others | Support InnoAgent out-of-band remote management (Optional) |
* This edge server is bundled with InnoTracking solution and is not available for separate purchase. |
