LAN

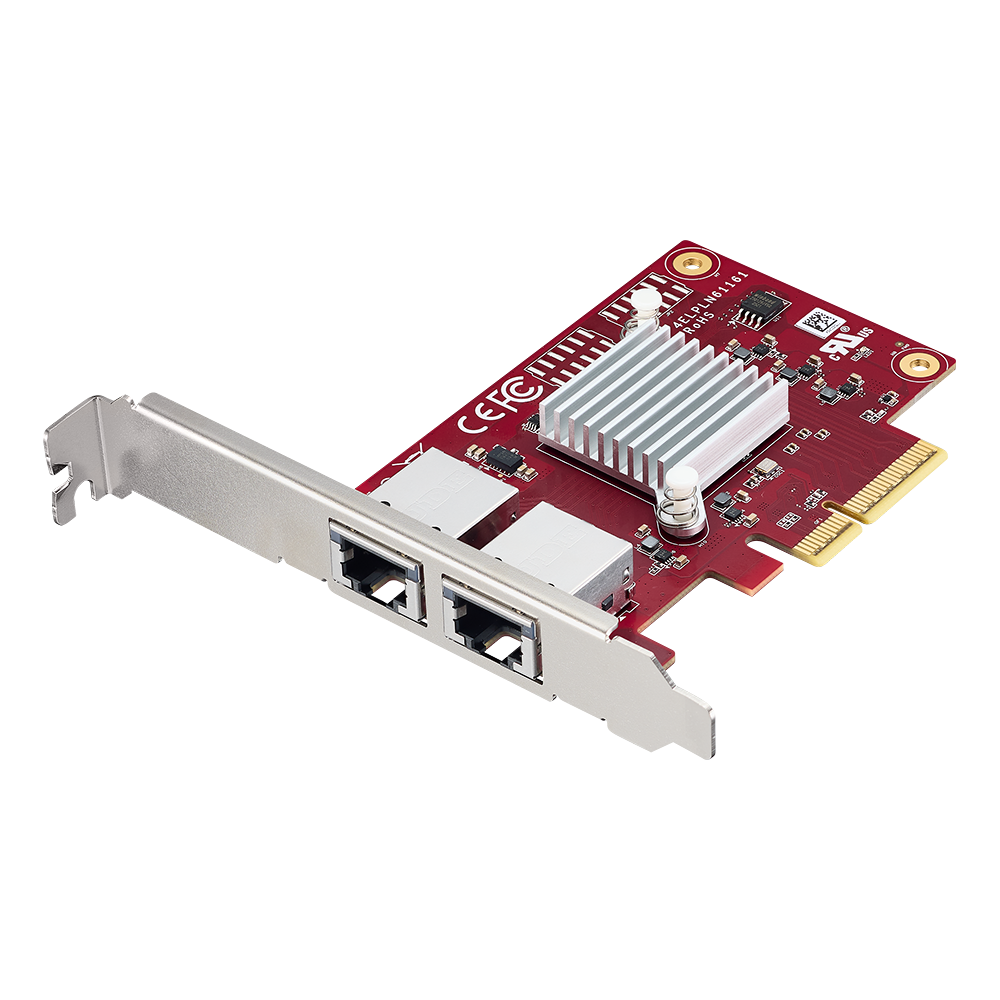

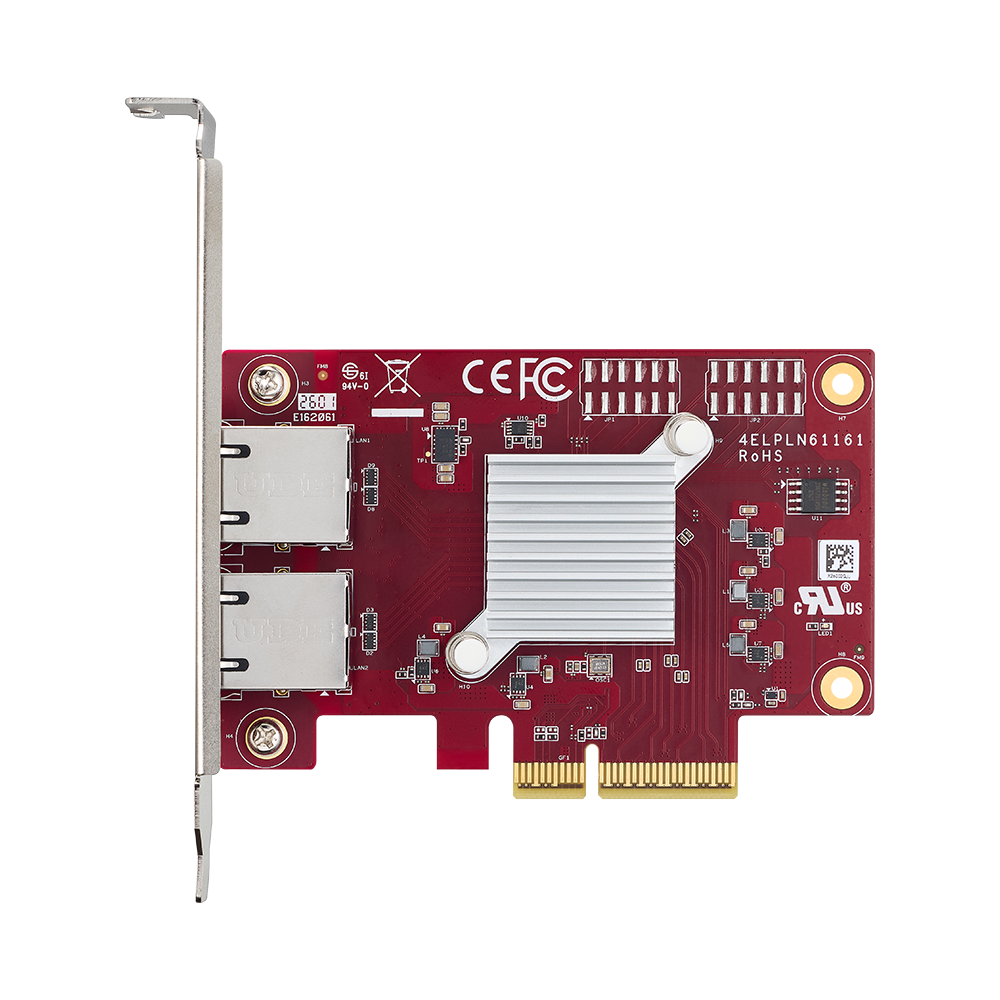

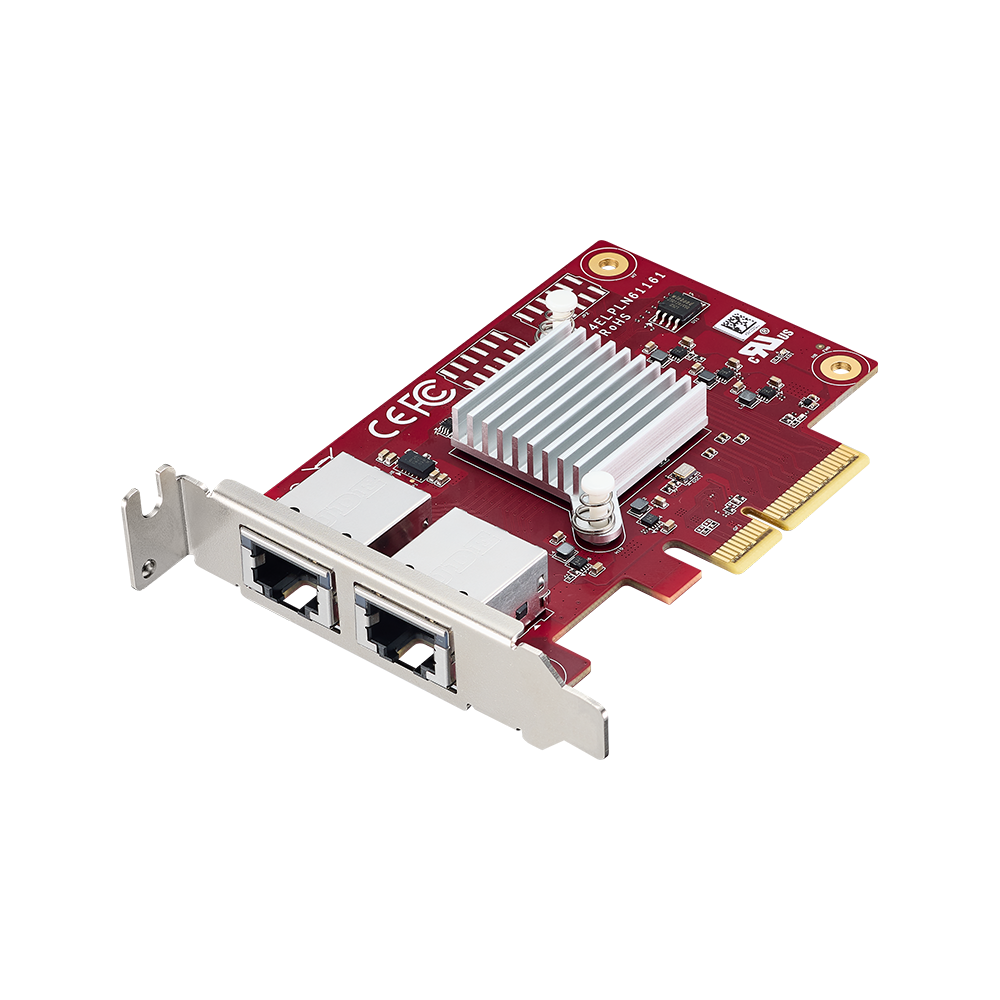

PCIe to Dual 10GbE LAN Module
ELPL-T201
Powered by
Intel E610-XAT2 / E610-XAIT2 Ethernet Controller
Features
- Compatible with PCIe Low-profile bracket
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Support DPDK 25.07 and PTP
- SR-IOV support up to 16VFs shared across all ports
- Operating temperature: -40°C ~ 85°C (Ta)

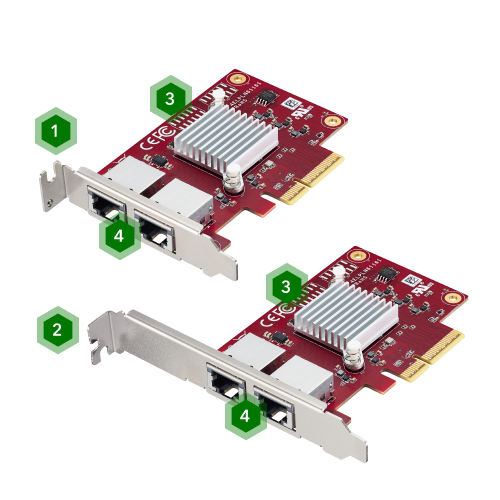

PRODUCT DETAILS AT A GLANCE
- 1Low-profile Bracket
- 2Standard-profile Bracket
- 3Heatsink
- 4RJ45 Connector
The Innodisk ELPL-T201 10GbE High-Speed LAN Module is a compact PCIe to Dual networking solution, purpose-built for space-constrained edge environments. Powered by a high-performance controller, the module delivers high-throughput, low-latency networking with support for DPDK, PTP, and SR-IOV to accelerate data-intensive workloads.
Its compact design enables easy integration into diverse system architectures. With industrial reliability and performance, ELPL-T201 empowers smart manufacturing, AGV/AMR, and other edge AI applications .

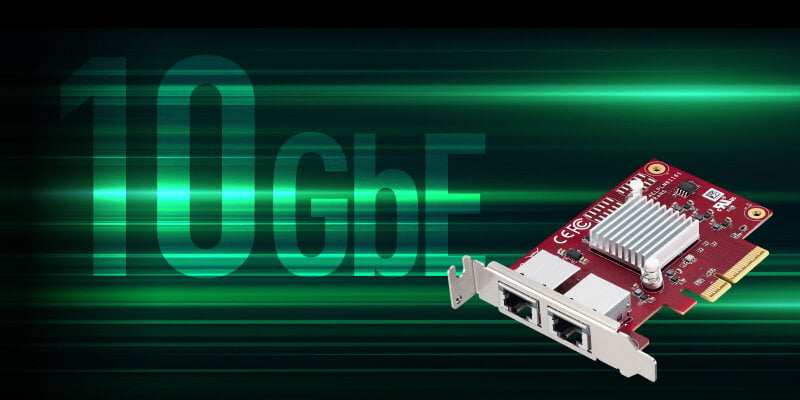

UNLEASH FULL-SPEED NETWORKING
Powered by an advanced Intel E610-XAT2 / E610-XAIT2 controller, the LAN module unlocks high-throughput, low-latency 10GbE connectivity. Full support for DPDK, PTP, and SR-IOV ensures peak performance for data-intensive and latency-sensitive workloads.
VERSATILE DESIGN FOR RAPID DEPLOYMENT

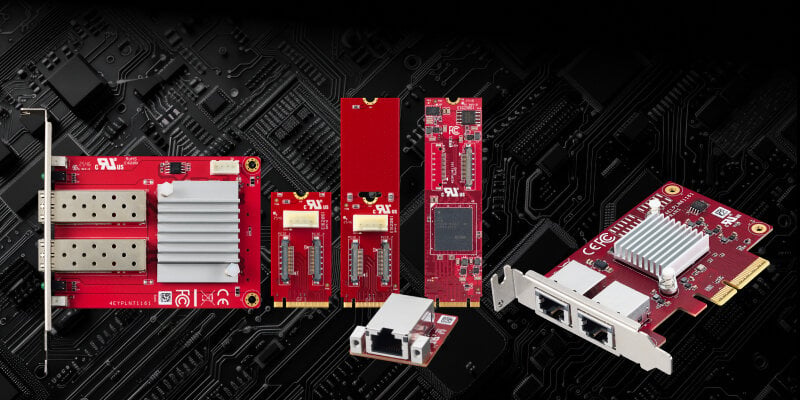

Available in M.2 2242, M.2 2280, and PCIe low-profile form factors, the 10GbE LAN module series eliminates the need for costly system redesigns. The compact design allows seamless networking upgrades even in systems with extreme space constraints, significantly reducing time-to-market.

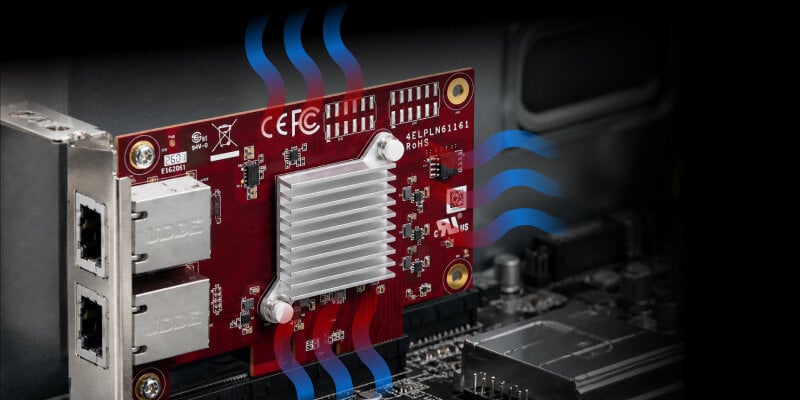

LOW PROFILE THERMAL OPTIMIZATION
Compatible with PCIe low-profile brackets, the module enables enhanced heat dissipation efficiency in small-form-factor systems.

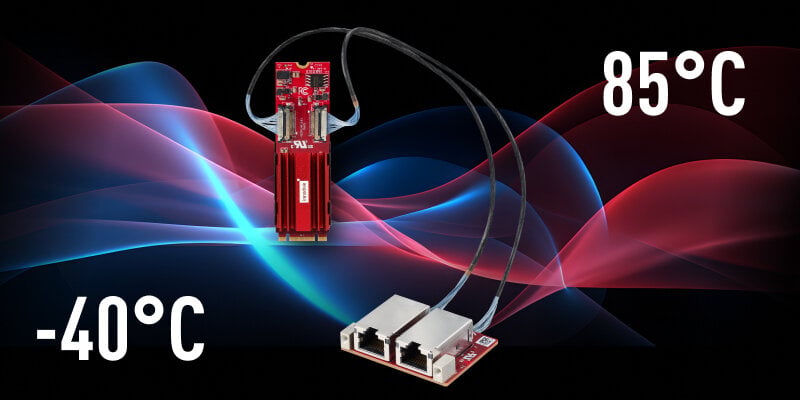

INDUSTRIAL-GRADE WIDE-TEMP SUPPORT
Engineered to operate reliably in extreme edge environments, supporting industrial temperature ranges from -40°C to 85°C (Ta).
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
AGV / AMR
Delivers high-throughput, low-latency connectivity for synchronized fleet coordination and reliable sensor streaming.
SMART FACTORY DEFECT DETECTION
Enables fast, stable image transmission for machine vision, allowing real-time part detection and positioning.

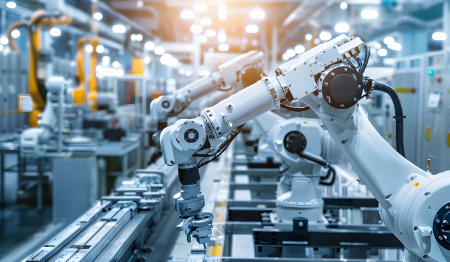

INDUSTRIAL CONTROL
Provides higher bandwidth and lower latency for precise equipment coordination and stable sensor data streaming in automation systems.

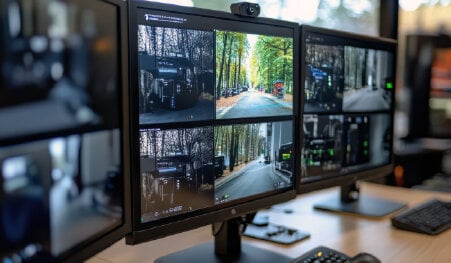

NVR SURVEILLANCE
Ensures smooth multi-camera 4K streaming and dependable video storage without frame drops under heavy loads.
SPECIFICATIONS
| Model Name | ELPL-T201 |
|---|---|
| Module Type | PCIe to Dual 10GbE LAN Module |
| Form Factor | Low-profile PCIe |
| Function | LAN |
| Input I/F | PCIe Gen 4 x4 |
| Output I/F | 10GbE LAN |
| Output Port | 2 |
| Output Connector | RJ45 |
| Max. Power Consumption | 4.04W (3.3V, 1.23A) |
| Dimension (W x L x H/mm) | 100 x 68.6 x 14.37 |
| Temperature | Operation : ST 0~70°C (Ta) / WT -40°C ~ 85°C (Ta) Storage : -40°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : 11 and above versions Linux : Kernel 6.18 and above versions |
| Warranty | 3 Years |
ORDER INFORMATION
| P/N | Description |
ELPL-T201-C1 | PCIe to Dual 10GbE LAN Module W/ LOW-BKT |
ELPL-T201-C2 | PCIe to Dual 10GbE LAN Module W/ STD-BKT |
ELPL-T201-W1 | PCIe to Dual 10GbE LAN WT W/ LOW-BKT |
ELPL-T201-W2 | PCIe to Dual 10GbE LAN WT W/ STD-BKT |
