mPCIe to Single Isolated 2.5GbE LAN Module
EMPL-21S1
Powered by
- Intel i226 controller
Features
- Complies with EN61000-4-5 2kV surge protection
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2kV HiPOT protection
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Flexible daughter board with cable to fit into different system
- Optional terminal mounting hole or bracket for daughter board
- Optional industrial temperature (-40°C to 85°C) support
PRODUCT DETAILS AT A GLANCE

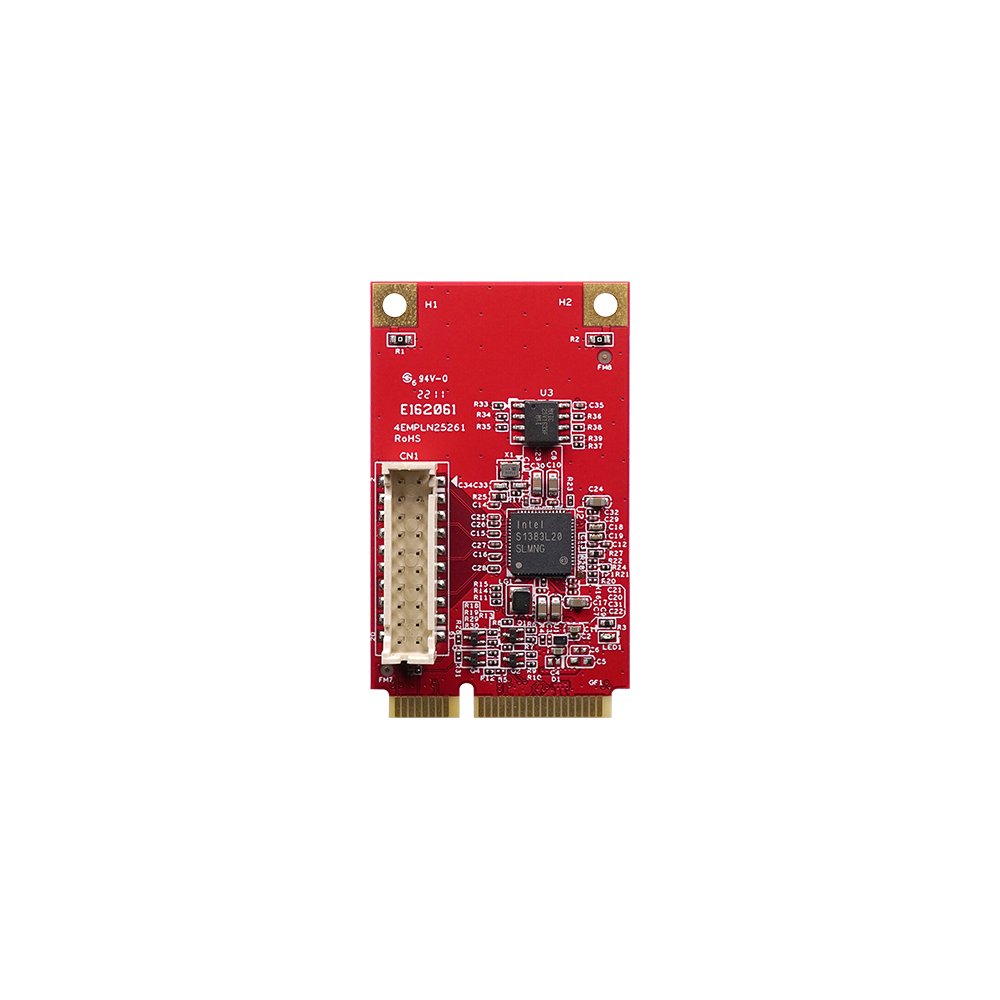

- 1LAN Connector
- 225cm Board to Board LAN Cable
- 3RJ45 Daughter Board
- 4RJ45 Daughter Board with Bracket (SKU Optional)
The EMPL-21S1 is a single isolated 2.5GbE LAN port module designed for high-performance networking. It complies with rigorous safety and durability standards, including EN61000-4-5 2kV surge protection and IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2kV HiPOT protection. The module also meets EN61000-4-2 (ESD) requirements with Air-15kV and Contact-8kV protection. Featuring a flexible daughter board with cable to accommodate various systems, the EMPL-21S1 offers an optional terminal mounting hole or bracket for added flexibility in installation. It also supports industrial temperatures ranging from -40°C to 85°C. With a 30μ” golden finger and a 3-year warranty, the module is built to ensure long-term reliability in demanding environments. Manufactured in Taiwan by Innodisk, it offers an industrial-grade solution for advanced networking needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMPL-21S1 |
|---|---|
| Module Type | mPCIe to Single Isolated 2.5GbE LAN Module |
| Form Factor | mPCIe |
| Function | LAN |
| Input I/F | PCI Express 2.1 x1 |
| Output I/F | 2.5GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 1.86W (3.3V, 564.7mA) |
| Dimension (W x L x H/mm) | Main Board: 30 x 50.9 x 9.2 Daughter Board: 59.5 x 30 x 17.32 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Linux Kernel rebuild is needed (modify igc driver) if version < 5.16.18. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro. |
